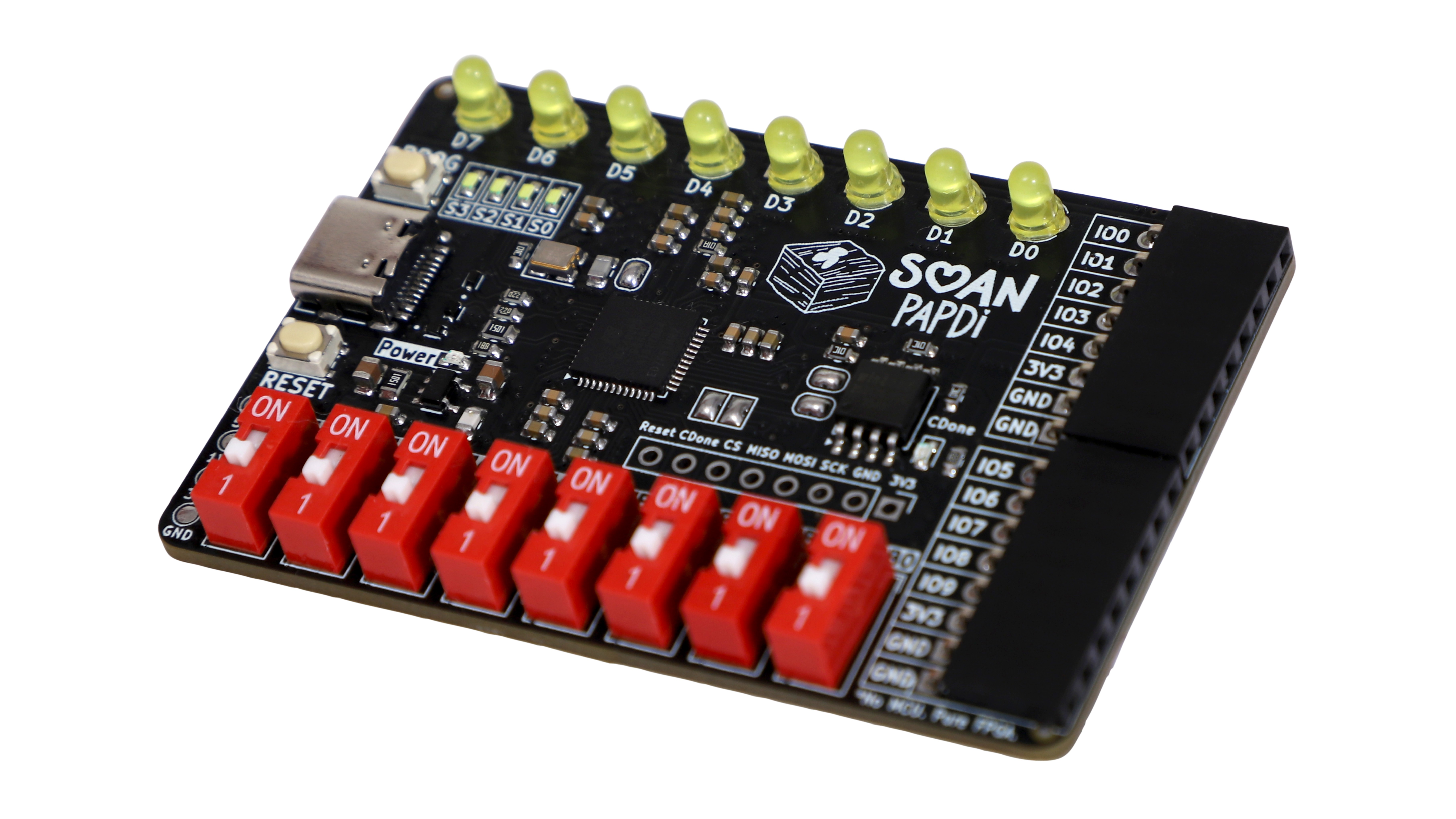

Soan Papdi FPGA
New to FPGAs?
Most FPGA boards are designed for experienced engineers. You spend hours hunting for components, wiring up circuits, and debugging setups before writing a single line of code. Soan Papdi is different.
No Complex HDL Needed

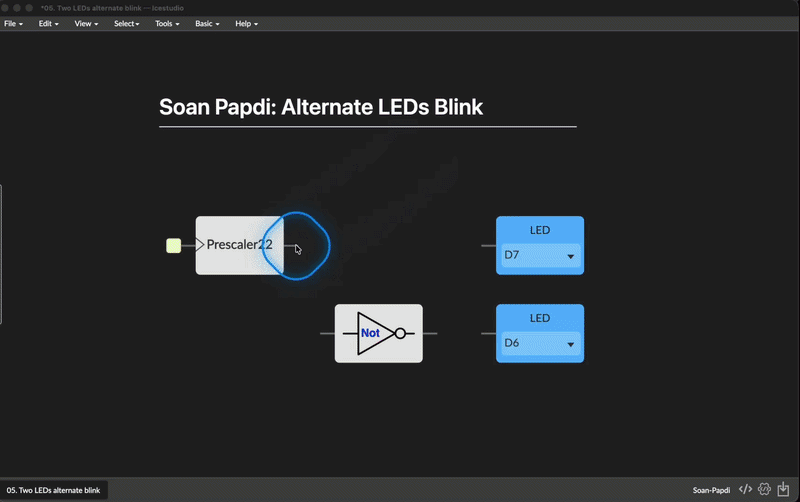

No complicated installation flow. No lame driver installation. Download the IDE, double-click, and get started! Program it using the open-source iCEStudio IDE or use RAW HDL.
Why this design?

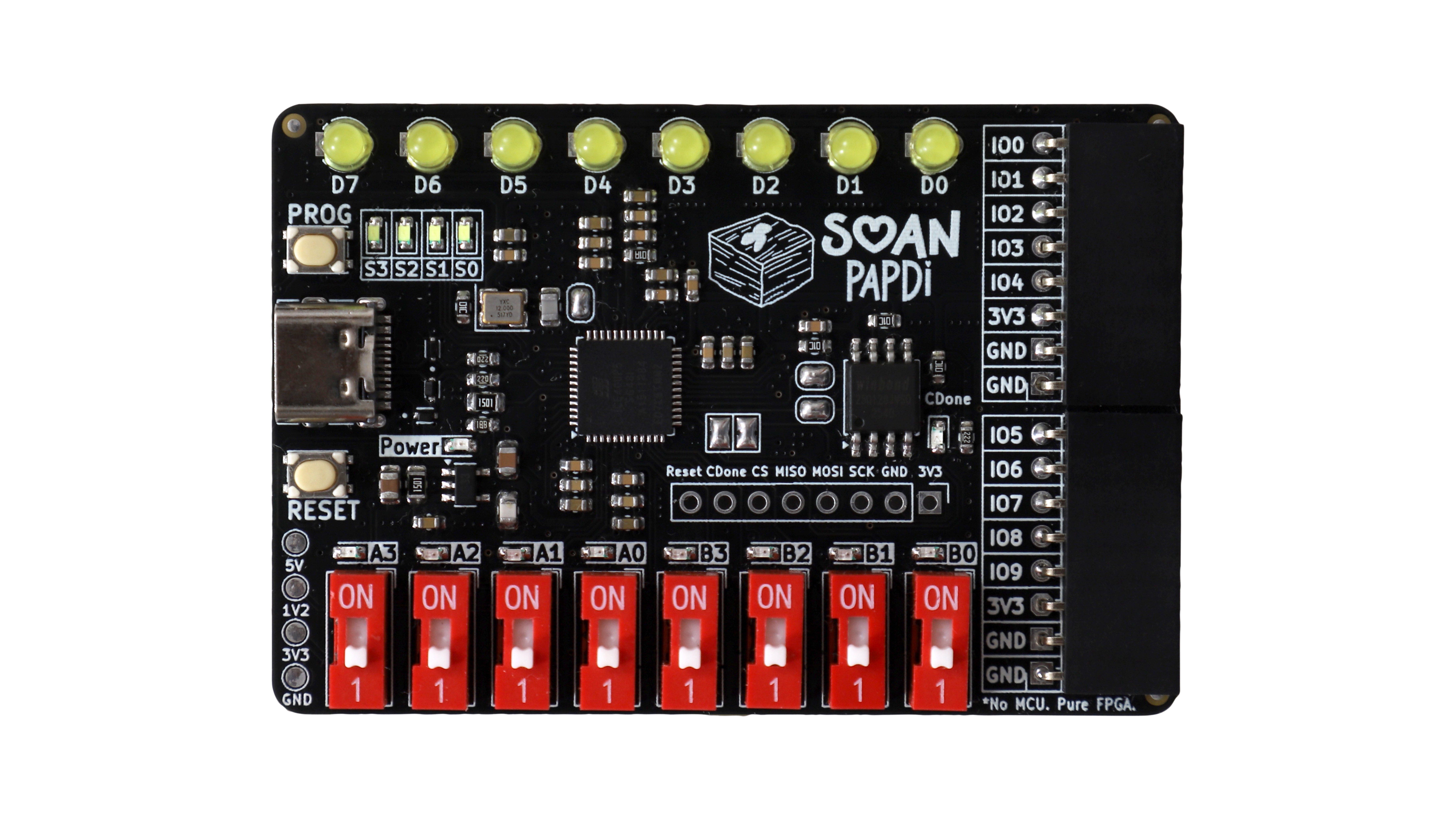

Soan Papdi is designed for learning — every component has a reason.

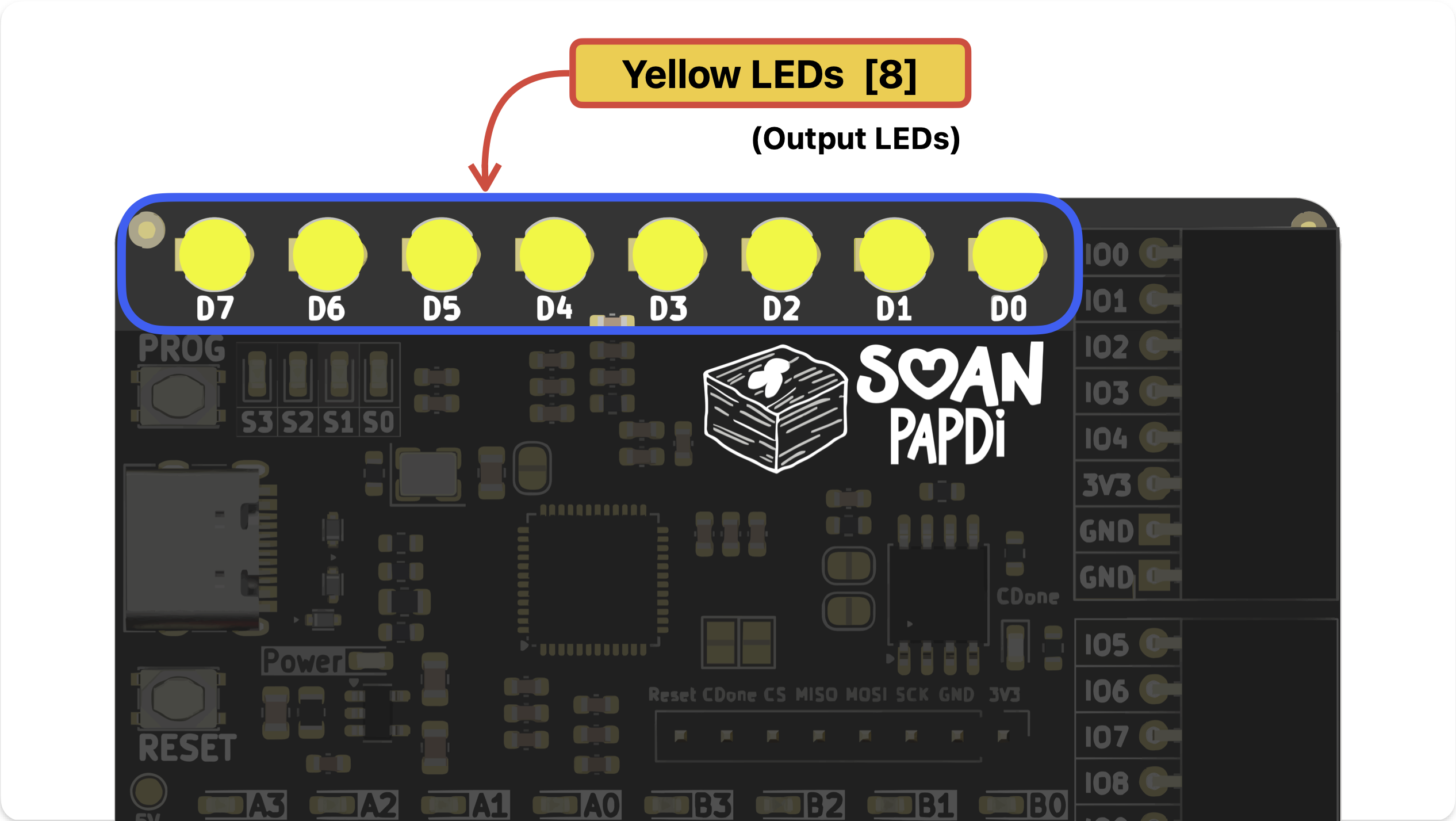

➜ Output LEDs (D7–D0)

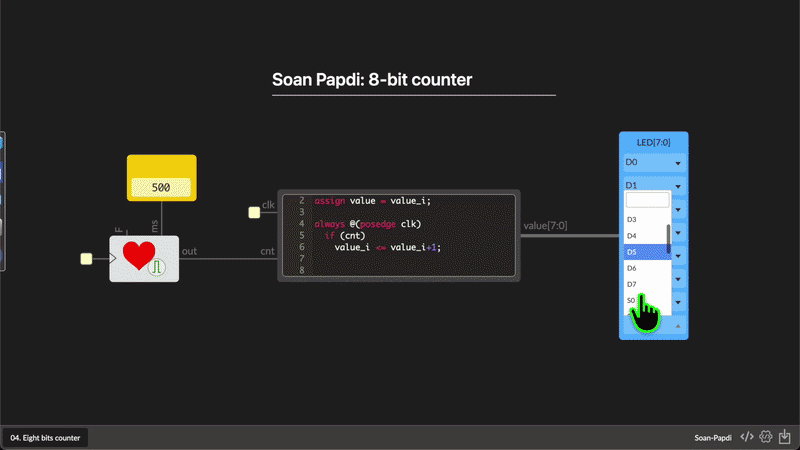

On top, we have 8 output LEDs (D7 to D0). These aren’t random. We chose 8 yellow LEDs because 8-bit data is fundamental to digital systems. When you build things like counters, shift registers, state machines, or simple processors, you can visualize the output directly on the LEDs in real-time.

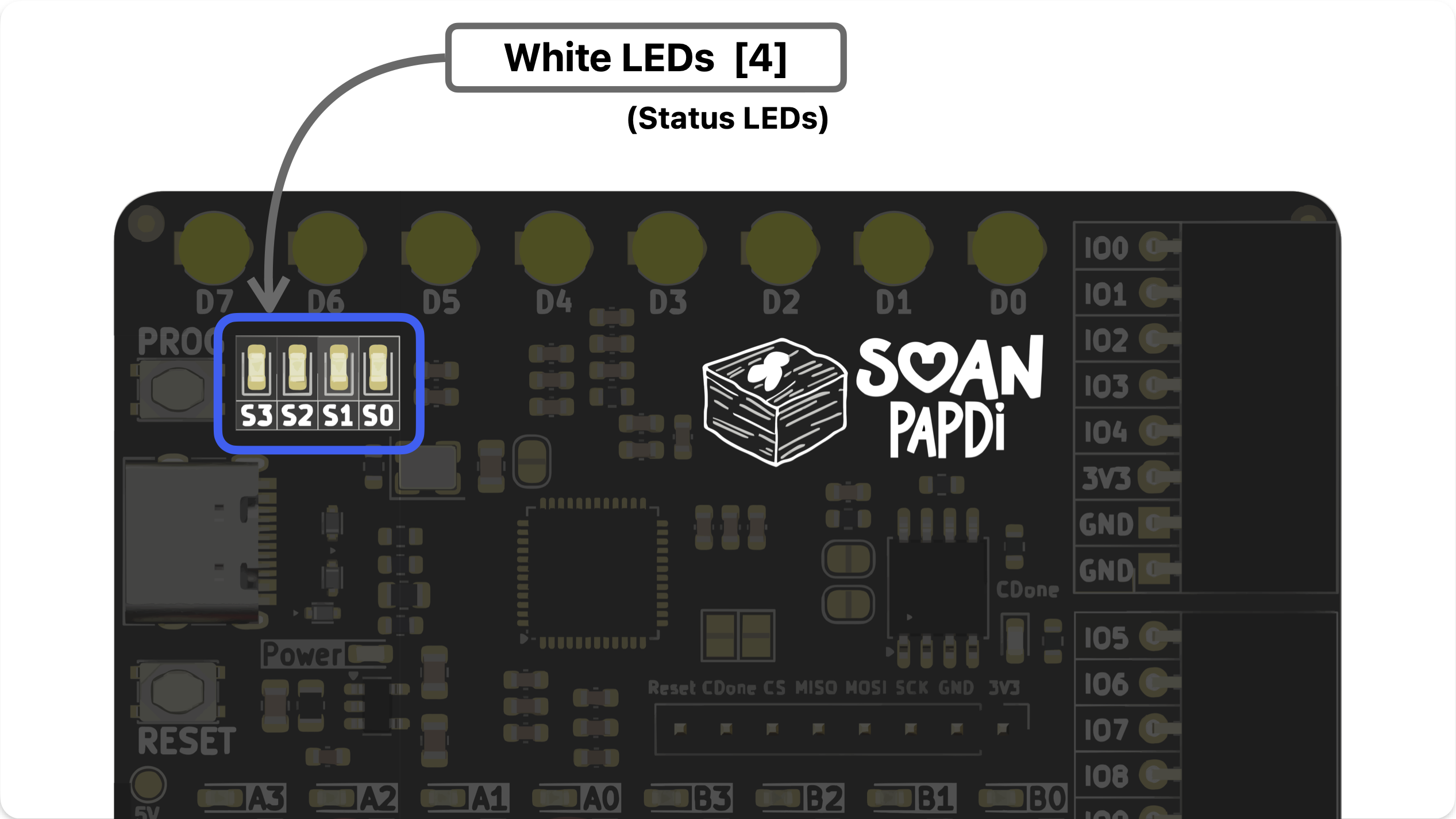

➜ Status LEDs (S3–S0)
Right next to the output LEDs are 4 white LEDs for status signals. Use them for carry flags, overflow indicators, error signals, or any custom status output — so you can see exactly what’s happening inside your circuit at a glance.

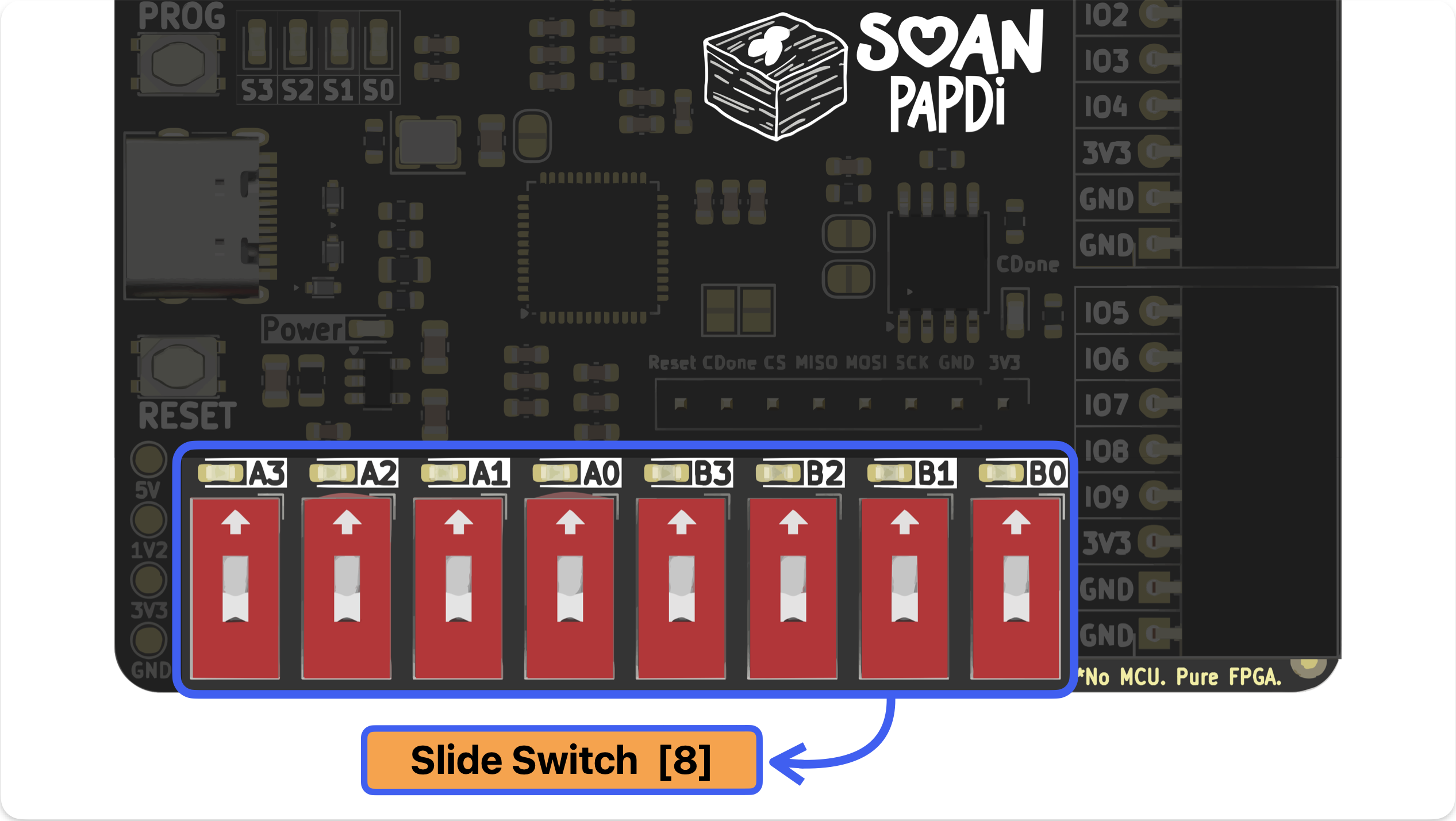

➜ Input Switches (A3–A0 & B3–B0)
At the bottom side of the board, we have two sets of switches (Set A and Set B). These let you input two 4-bit values directly into your FPGA design. Build an adder, subtractor, comparator, or simple calculator, then change the inputs and observe the results instantly.

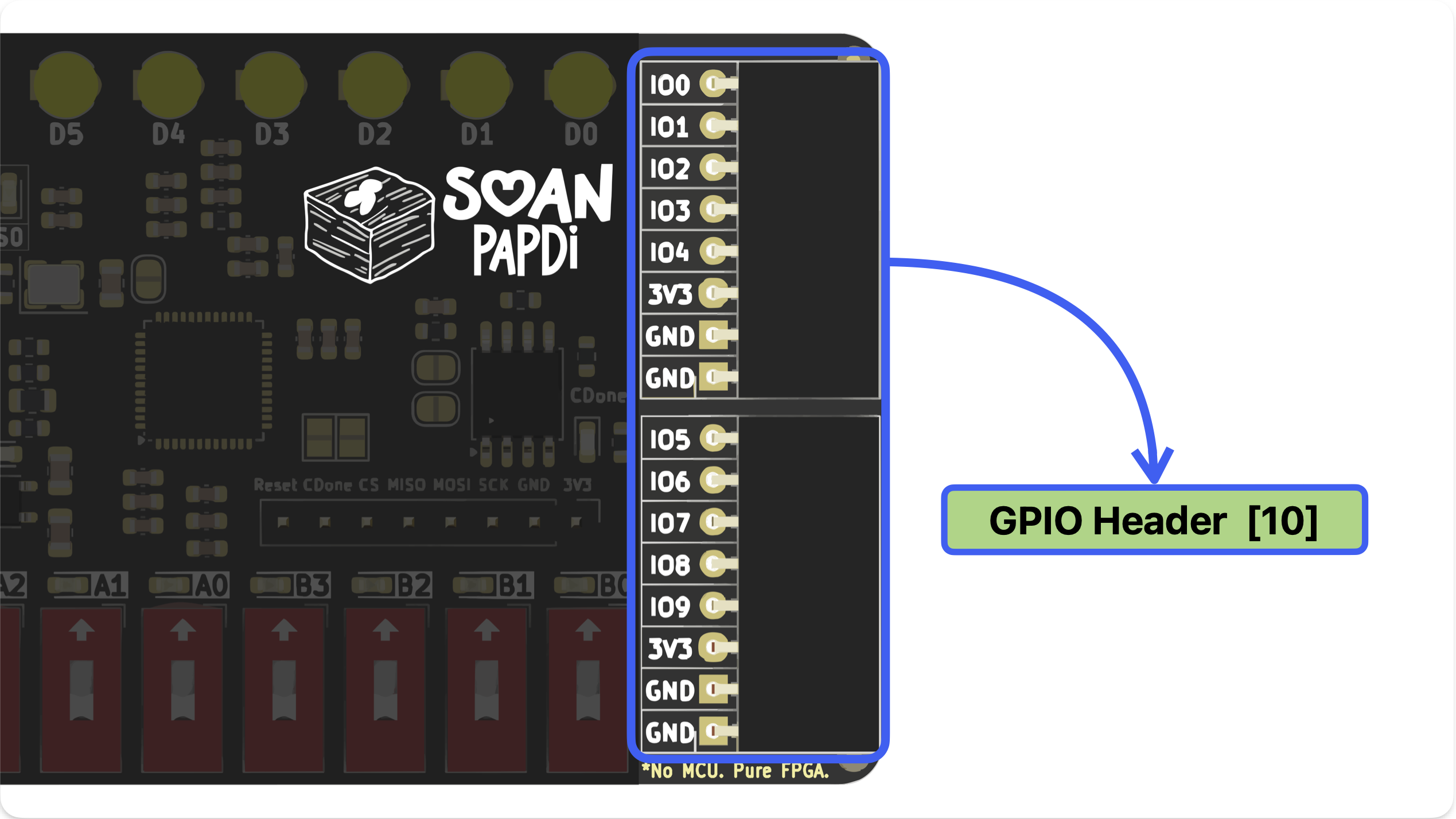

➜ GPIO Pins (IO0–IO9)

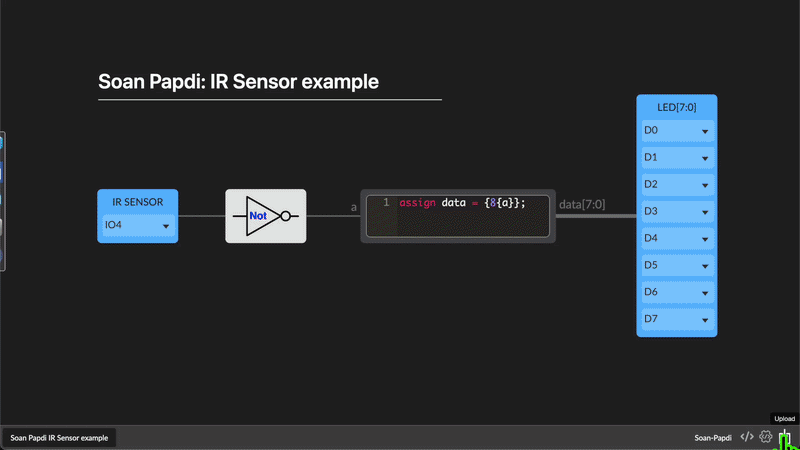

On the right side of the board, 10 GPIO pins let you go beyond the onboard peripherals. Connect sensors, displays, motors, or your own custom hardware to extend the capabilities of Soan Papdi.
Specification
Learning Resources
To make things easier, Piyush Itankar has created a Digital Electronics 101 course, where everything is explained step-by-step.
Start simple — build basic gates like AND, OR, or a decoder. Once you’re comfortable, move on to advanced projects:
- RISC-V CPU — A RISC-V processor implementation
- Z80 CPU — A recreation of the classic Z80 processor
- Hack CPU — The Nand2Tetris Hack CPU, built gate by gate
Looking for more inspiration? Browse the full iCEstudio Example Collection.
